Mastercolour Ceramic Metal Halide CDM-R111 |

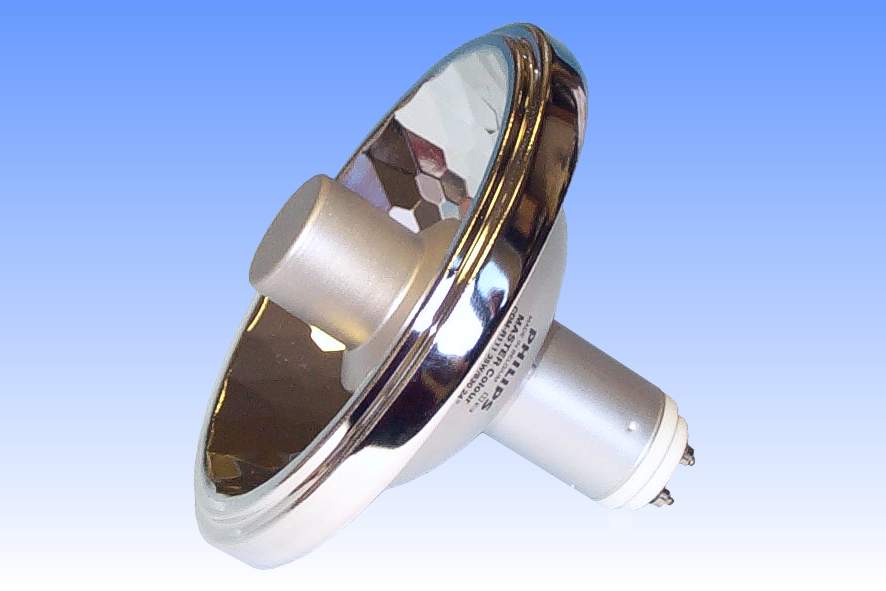

The reflector is of an attractive multi-facetted spun aluminium design and mounted at its focus is the arc tube of a slightly modified mini CDM-TC compact capsule lamp. Perhaps the most important part though is the glare shield cap which is affixed over the top of the capsule and screens the arc tube from direct view. A flared rim to the shield acts as a secondary internal reflector to capture forward light from the arc tube and send it back to the main reflector to be precisely collimated into the beam.
This kind of glare shield is partly what made the AR-111 halogen lamps so popular. Beams of light can be produced which have a very sharp cutoff around the edge, and consequently the glaring intensity of the arc tube can only be seen through its reflections in the mirror, these only being visible when staring directly into the beam. The large diameter of the reflector also allows tighter beam angles to be attained with ease, permitting luminaires project their light from greater distances and be positioned out of view.
A new GX8.5 cap of the twist-lock style is fitted to the lamp to facilitate replacement at end of life. To minimise the system cost and complexity of upgrading from halogen to CDM, this lamp is accompanied by a new PrimaVision twin-lamp electronic ballast from Philips. This is most appropriate since the majority of stylish luminaires designed for the AR-111 make use of a pair of lamps.
| Manufacturer: | Philips Lighting | |
| Lamp Power: | 38 Watts | |
| Lamp Current: | 0.5 Amps | |
| Lamp Voltage: | 88 Volts | |
| Cap: | GX8.5 ceramic | |
| Bulb Finish: | Aluminium Reflector | |
| Bulb Type: | AR-111 | |
| Overall Length: | 211 mm | |
| Light Centre Length: | 127 mm | |
| Electrodes: | Backwound tungsten on thoriated shank | |
| Inner / Outer Atmosphere: | Ar,Kr|Hg (Na,Dy,Ho,Tm)Ix | Outer: Hard vacuum |
| Beam Angle & Intensity: | 24 degrees to 1/2 peak | ~ 9000 peak cd |
| Luminous Flux & Efficacy: | 2,300 lm (at 100 hrs) | 100 lm/W (at 100 hrs) |
| Colour Temperature & CRI: | CCT: 3000K | CRI: Ra 81 |
| Chromaticity Co-ordinates: | CCx: 0.431 | CCy: 0.400 |
| Burning Position: | Universal | |
| Rated Life: | 6,000 hours | (to 50% survival) |
| Warm Up / Re-strike Time: | 3 minutes | 15 minutes max. |
| Factory: | Turnhout | Belgium |
| Date of Manufacture: | May 2003 | |
| Original / Present Value: | ||
